Stryker's 1688 AIM 4K Platform:
the first to 4K fluorescence!
The entire tower is managed by the Connected OR Hub, giving you seamless connectivity to images, data and settings.
Experience a new era of surgical visualization with
Stryker's 1688 AIM 4K Platform
A. Advanced Imaging Modalities
SPY fluorescence enables realtime imaging of perfusion, blood flow and critical anatomy
B. Brilliant 4K Display
Consistently bright, crystal clear images
C. 1688 Camera
Native 4K resolution
D. SPY-PHI
Allows for visualization of tissue perfusion during open surgery
E. Connected OR Hub
Total control of the visualization system, easily customized for a more consistent surgical environment
F. PneumoClear all-inclusive insufflator
Smart inflow/outflow management with heated, humidified and smoke evacuation all-in-one tube set
G. Powerful and versatile CCU
Adapts to multiple specialties
H. L11 with AutoLight
Improved light control and maintenance*
I. VPI
Connection for SPY-PHI for fluorescence imaging in open surgery
J. Printer
Print from 4K or HD
K. Connected OR Cart
Reduced OR footprint with enhanced maneuverability
IRIS
Lighted uteral stents designed to improve visualization of ureters during surgery
AutoLight
Automatic light adjustment to maintain consistent lighting throught the procedure

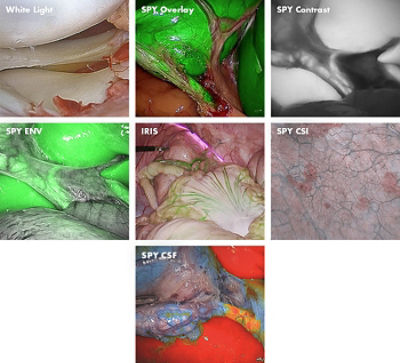

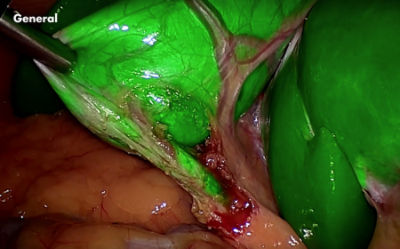

SPY Overlay
4K fluorescence overlay on a white light image
SPY Contrast
High contrast visualization of 4K fluorescence in black and white
SPY ENV
4K fluorescence displayed in grayscale and green

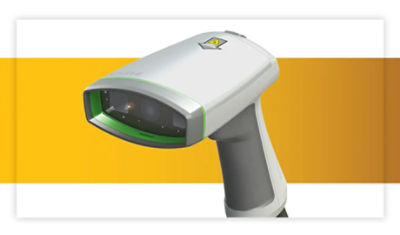

SPY-PHI Fluorescence Imaging technology
For an enlightened perspective on open surgery
The SPY Portable Handheld Imager (SPY-PHI) utilizes SPY Fluorescence Imaging technology, and allows surgeons to visualize blood flow in vessels and related tissue perfusion during plastic, microsurgical, reconstructive and gastrointestinal procedures. SPY-PHI’s modalities include: white light, SPY Fluorescence Mode, Overlay Fluorescence Mode and Color-Segmented Fluorescence Mode.

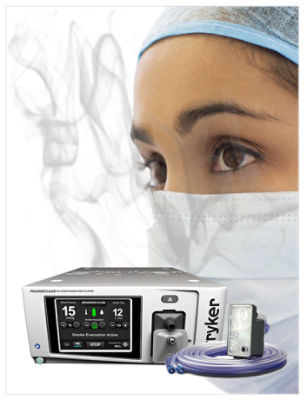

PneumoClear
One clear solution to simplify safety in the OR.
PneumoClear’s smart and integrated management system is designed to maintain stability while actively evacuating smoke, helping to protect against the harmful effects of surgical plume.1
93%
of nurses feel more comfortable working in the OR with a smoke evacuation device in use.2
27-30
The average daily impact of surgical smoke is equal to 27-30 unfiltered cigarettes.1
The future of software.
Now introducing the Connected OR Hub Video Imaging Processing (VIP) Package
Anticipate your needs with Stryker’s first software solution designed with artificial intelligence and machine learning concepts in mind.
Connect with Stryker
Follow Endoscopy on Twitter, LinkedIn, Instagram and Youtube for the latest news and events.
References:
* compared to previous generations
- Data on File.
- Hill D, O’Neill J, Powell R, Oliver D. Surgical Smoke - a health hazard in the operating theatre. A study to quantify exposure and a survey of the use of smoke extractor systems in UK plastic surgery units. Journ Plas Reconstr Aesthet Surg. 2012; 65(7): 911-6.
- Data on File.
Upon intravenous administration of SPY AGENT™ GREEN (indocyanine green for injection, USP) the SPY-PHI System is used with SPY AGENT™ GREEN to perform intraoperative fluorescence angiography. The SPY-PHI System is indicated for use in adult and pediatric patients one month of age and older.
The SPY-PHI System is indicated for use in adult and pediatric patients one month of age and older. The SPY-PHI System is indicated for fluorescence imaging of blood flow and tissue perfusion before, during , and after: vascular, gastrointestinal, organ transplant, and plastic, micro- and reconstructive surgical procedures.
Upon interstitial administration of SPY AGENT™ GREEN, the SPY-PHI System is used to perform intraoperative fluorescence imaging and visualization of the lymphatic system, including lymphatic vessels and lymph nodes.
Literature Number: 1000904207
