Ortholoc 3Di
Ankle Fracture
Plating System

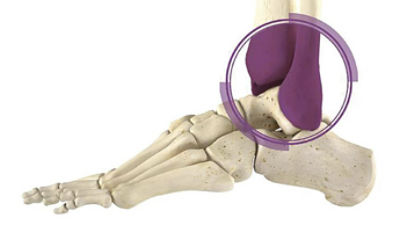

Ankle fractures are the most common intra-articular fracture of a weight-bearing joint.1 These injuries present in a multitude of classifications and degrees of severity. The Ortholoc 3Di Ankle Fracture System combines a complete selection of indication specific implants and instruments with an advanced and versatile locking plate technology, providing a comprehensive single tray solution to these complex indications.
Key features
- Single tray total indication solution eliminates the need for multiple trays in the operating room
- Eight screw options universally compatible with all plate screw holes for unsurpassed surgical versatility
- Pre-contoured, low-profile plate geometries and anatomic screw trajectories increase surgical speed and accuracy
The Ortholoc 3Di Ankle Fracture System offers various plates indicated for ankle fractures. This plating system includes a Lateral Fibula Plate, Posterior Fibula Plate, Syndesmosis Plate, Medial Malleolar Plate, Straight Plate, 1/3 Tubular Plate, Anterior Tibia Delta Plate, Anterolateral Tibia Plate, Medial Tibia Plate, and Posterior Tibia Plate.
Ortholoc 3Di Ankle Fracture

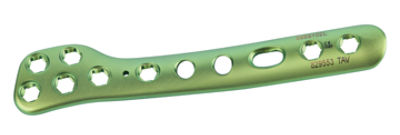

Lateral Fibula

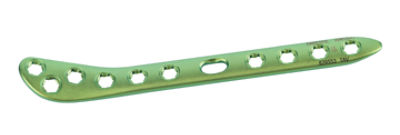

Posterior Fibula
Syndesmosis Plate

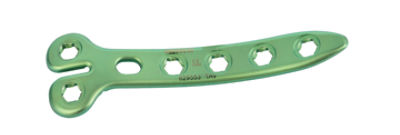

Medial Malleolar

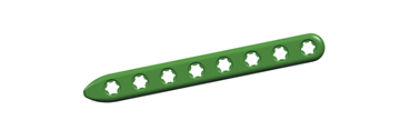

Straight

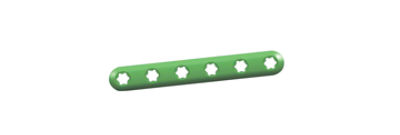

1/3 Tubular

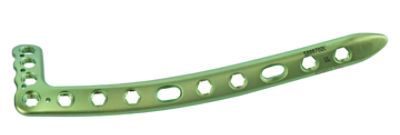

Anterolateral Tibia

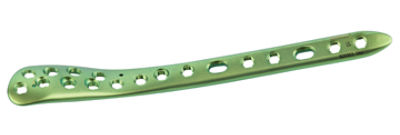

Medial Tibia Plate

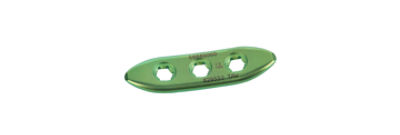

Posterior Tibia

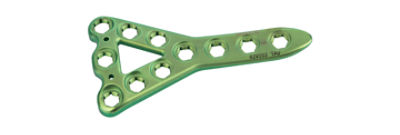

Anterior Tibia Delta
Screws and Instrumentation
2.7mm Locking Screw
- On axis and polyaxial locking capability
- Cortical Thread
- 2.0mm Pre-drill
- 10 - 18mm lengths
- Color Code: Grey
3.5mm Locking Screw
- On axis and polyaxial locking capability
- Cortical Thread
- 2.8mm Pre-drill
- 10 - 60mm lengths
- Color Code: Purple
3.5mm Low-Profile Screw
- On axis and polyaxial locking capability
- Cortical Thread
- 2.5mm Pre-drill
- 10 - 60mm lengths
- Color Code: Bronze
3.5mm Cortical Bone Screw
- Cortical Thread
- Fully Threaded
- 2.5mm Pre-drill
- 10 - 60mm lengths
- Color Code: Bronze
4.0mm Cortical Bone Screw
- Cortical Thread
- Fully Threaded
- 2.8mm Pre-drill
- 40 - 60mm lengths
- Color Code: Gold
4.0mm Cancellous Bone Screw
- Cancellous Thread
- Fully threaded
- 2.5mm Pre-drill
- 10 - 60mm lengths
- Color Code: Green
4.0mm Cancellous Bone Screw
- Cancellous Thread
- Partially threaded
- 2.5mm Pre-drill
- 20 - 60mm lengths
- Color Code: Green
4.0mm Cancellous Bone Screw
- Cancellous Thread
- Partially threaded
- Cannulated Design (1.4mm K-Wire)
- 3.0mm Pre-drill
- 20 - 60mm lengths
- Color Code: Blue
Bone Screw Washers
- Washers are intended to prevent a screw head from breaking through the cortex of the bone by distributing the forces/load over a large area.
