Ortholoc® 2
Ankle Fracture LP
with 3Di Technology
Ankle fractures represent the most common type of intra-articular fracture in weight-bearing joints.1 These injuries present a multitude of classifications and degree of severity. The Ortholoc 2 Ankle Fracture Low Profile System combines a complete selection of indication specific implants and instruments with an advanced andversatile locked plate technology, providing a comprehensive single tray solution to these complex indications.
Key features
Completely redesigned to address the anatomy
- Offset syndesmotic and lateral fibula plates allow for precise syndesmotic fixation
- Versatile, low-profile plate designs are Type II anodized, pairing increased strength with minimal construct prominence
- System features a wide range of plates including hook, medial & posterior tibia, 1/3 tubular and syndesmosis plates
Ortholoc 2 LP Ankle Fracture plates
Gravity Synchfix is compatible with plates from the Ortholoc 2 LP Ankle Fracture Plating System. The system includes a Syndesmosis Plate and a Lateral Fibula Plate that both come in Straight and Offset options for the syndesmotic plate holes.

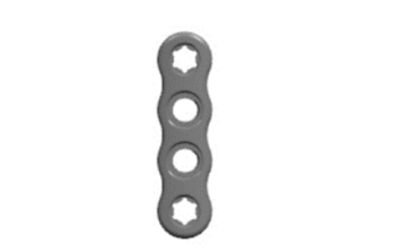

Straight syndesmosis plate

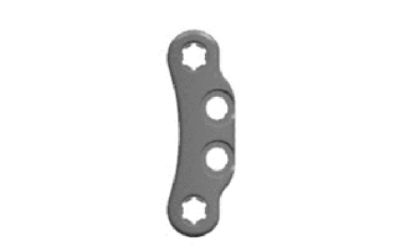

Offset syndesmosis plate

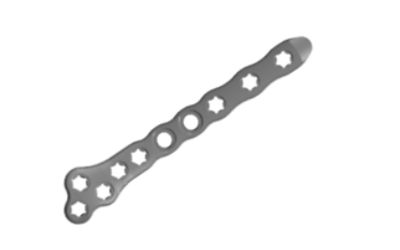

Straight lateral fibula plate

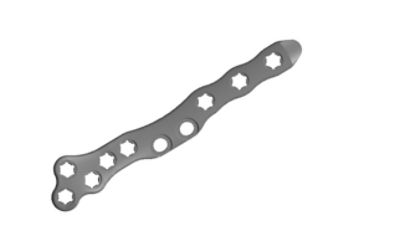

Off set lateral fibula plate

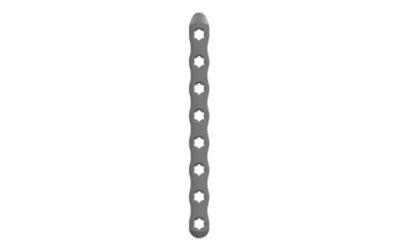

1/3 tubular plate

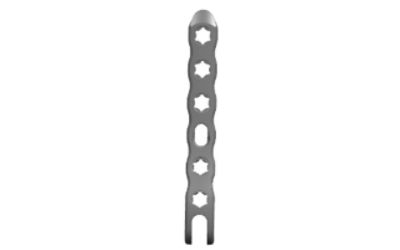

Hook plate

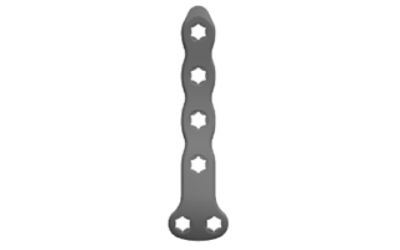

Medial malleolar plate
Screws and instrumentation

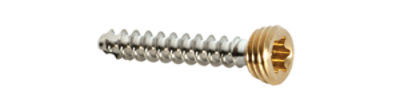

2.7mm locking screw
- On axis and polyaxial locking capability'
- Cortical thread
- 2.0mm pre-drill
- 10 - 18mm lengths
- Color code: grey

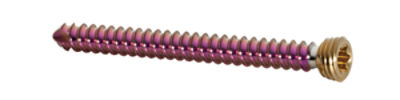

3.5mm locking screw
- On axis and polyaxial locking capability
- Cortical thread
- 2.8mm pre-drill
- 10 - 60mm lengths
- Color code: purple

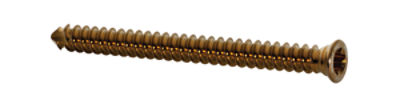

3.5mm low-profile screw
- On axis and polyaxial locking capability
- Cortical thread
- 2.5mm pre-drill
- 10 - 60mm lengths
- Color code: bronze

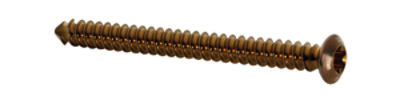

3.5mm cortical bone screw
- Cortical thread
- Fully threaded
- 2.5mm pre-drill
- 10 - 60mm lengths
- Color code: bronze

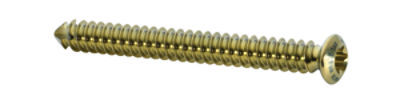

4.0mm cortical bone screw
- Cortical thread
- Fully threaded
- 2.8mm pre-drill
- 40 - 60mm lengths
- Color code: gold

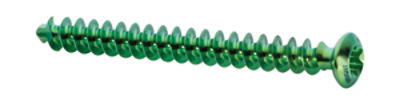

4.0mm cancellous bone screw
- Cancellous thread
- Fully threaded
- 2.5mm pre-drill
- 10 - 60mm lengths
- Color code: green

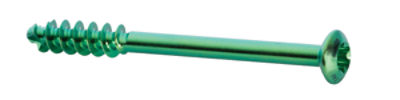

4.0mm cancellous bone screw
- Cancellous thread
- Partially threaded
- 2.5mm pre-drill
- 20 - 60mm lengths
- Color code: green

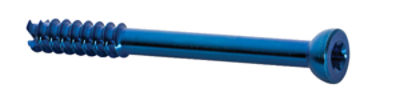

4.0mm cannulated bone screw
- Cancellous thread
- Partially threaded
- Cannulated design (1.4mm K-wire)
- 3.0mm pre-drill
- 20 - 60mm lengths
- Color code: blue

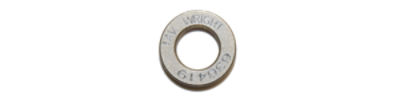

Bone screw washers
Washers are intended to prevent a screw head from breaking through the cortex of the bone by distributing the forces/load over a large area.
Product resources

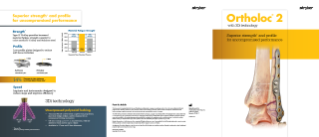

Discover a wealth of product resources at your fingertips. From informative videos to comprehensive brochures and handy downloads, access all the tools you need to make informed decisions and maximize the benefits of our innovative solutions
Contact us
Send us a message to learn more about Ortholoc 2 Ankle Fracture LP
Have questions or inquiries? We’re here to help! Fill out the contact form, and our dedicated team will get back to you promptly. Your feedback and inquiries are important to us, and we look forward to assisting you with any information or support you may need.
Are you a patient looking for more information or a physician in your area?
Click the button below for our patient website.
Thank you!
1. Phillips WA et al. J Bone Joint Surg 67A:67-78, 1985
