VariAx 2®
Clavicle
Variable Angle Locking Plate System
The VariAx 2 Clavicle Plating System provides surgeons with a comprehensive range of antomic plating options that work with a common instrument and screw platform. Plates utilize SmartLock Technology which permits polyaxial screw placement. You can angle locking screws up to 15° in each direction for a total range of 30° providing you with the flexibility to position screws based on the patient’s needs, not on the plate’s pre-existing design.

Product specifications The VariAx 2 Clavicle System offers a range of midshaft and lateral plates which are anatomically contoured to the superior or anterior surface of the bone.  Additionally, the surgeon has a choice of different plate curvatures designed to fit various anatomies.  Finally, these plates accept either 3.5mm or 2.7mm non-locking or locking screws.  Only non-locking screws may be placead in the oblong holes of the plate.  Circular holes accept either locking or non-locking screws.

Superior Plating Options

Superior Plating Options

Midshaft

  • A. Increased and decreased curvature to accommodate different medial to lateral curvatures

  • B. The Bridge Plates are designed with suture holes which may be used to help reduce and hold comminuted fracture fragments

Lateral

  • A. The superior lateral clavicle plate offers an optional fixed-angle aiming block which may be used to help guide the surgeon in placing screws in a reproducible divergent screw pattern.

Hook

  • A. The hook is anatomically pre-contoured to fit the inferior aspect of the acromion.

Anterior Plating Options

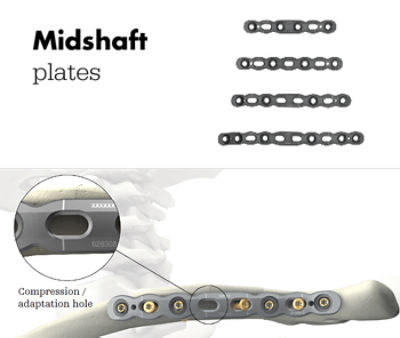

Midshaft Plates

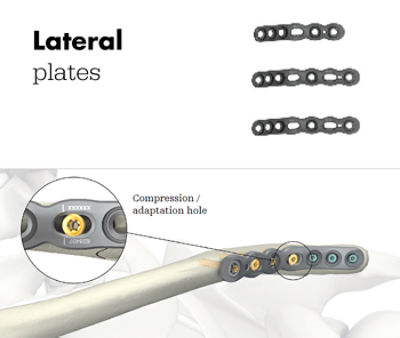

Lateral Plates

SOMA® Designed

Only by truly understanding the challenges you face can we offer a portfolio to best fit your needs. With anatomically contoured plates designed or validated using our proprietary SOMA technology, streamlined instrumentation, and trained representatives, our plating portfolio is designed with you in mind.

Our plating portfolio ranges from indication specific plates and patented Smartlock technology to streamlined instrumentation for ease-of-use in the OR. Helping to solve  complicated fractures with simple innovative solutions – Plating that fits.

Stryker Orthopaedic Modeling and Analytics, or SOMA, consists of a database of over 19,500 3D bones generated from CT scans of patients. This comprehensive database and proprietary software helps design a better fitting implant and allows for true evidence based design.

Core Tray

The VariAx 2 Platform is designed to offer a comprehensive, modular and easy-to-use platform for treating various small fragment applications including clavicle, humerus, radius, ulna, fibula, fore-/mid and hind foot.

Stryker's plating portfolio is 'plating that fits' because we carefully consider how our entire portfolio- plates, procedures and support- best fit your needs.

  • Core tray includes one set of T8/T10 screws plus standardized instrumentation and reduction instruments.
  • Add-on trays hold the comprehensive range of plating options designed to accommodate a certain procedure.  Add on trays include: Wrist, Elbow, Clavicle, Foot, and Small Fragment.
  • Color coded screws and instruments designed to easily identify screw diameter, screw type, and corresponding instrumentation. A black laser marking on the screw head indicates a locking screw.
VariAx 2 Clavicle resources Discover more about VariAx 2 Clavicle by exploring our collection of unique clinical resources including surgical reduction technique, exposure, and product overview videos, brochures, whitepapers, and more.
