Stryker Hand

Plating System

The Stryker Hand Plating module houses the VariAx Hand Locking and Profyle Hand Systems which offer the benefits of a comprehensive range of variable angled locking and non-locking plating options to treat fractures of bones of the hand and wrist. Plates utilize SmartLock Technology which permits polyaxial screw placement. You can angle locking screws up to 10 degrees in each direction for a total range of 20 degrees providing you with the flexibility to position screws based on the patient's need, not a plate's pre-existing design.

Stryker Hand Plating System

System overview:

Modular tray design:

The Stryker Hand Plating System consists of two modules with interchangeable inlays. The VariAx Hand Locking Plate Module offers variable angled locking plates as well as non-locking plates and screws for 1.7mm and 2.3mm implant sizes. The Profyle Hand Standard Plate Module offers non-locking plates and screws for 1.2mm, 1.7mm and 2.3mm implant sizes.

Stryker Hand Plating Modular Tray

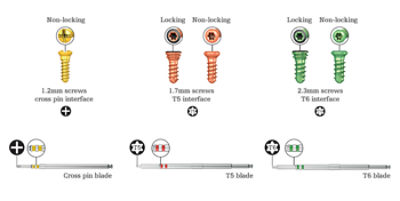

VariAx Screws and driver interfaces

1.2mm screws cross pin interface
(Non-locking)

VariAx Screws and driver interfaces

1.7mm screws T5 interface
(Locking)    (Non-locking)

VariAx Screws and driver interfaces

2.3mm screws T6 interface
(Locking)    (Non-locking)

VariAx Screws and driver interfaces

Cross pin blade

VariAx Screws and driver interfaces

T5 Blade

VariAx Screws and driver interfaces

T6 Blade

Screw size and corresponding drill bit
Stryker Hand Plating System Drill Bit

Drill bit,
 1.0mm x 22mm

Stryker Hand Plating System Drill Bit

Drill bit,
1.4mm x 27mm

Stryker Hand Plating System Drill Bit

Drill bit,
1.9mm x 27mm

Stryker Hand Plating System Drill Bit

Overdrill for 2.3mm screws,
2.5mm x 26mm

The system also comes with emergency screws. Emergency screw sizes are colored blue to differentiate from the standard screw colors, and do not match the instrument color coding. These screws are available in three different sizes depending on the diameter of the initial screw use. Emergency screws are useful when initial fixation is not achieved due to poor or failed screw purchase and a slightly larger diameter screw might be needed.

Stryker Hand Plating System Emergency Screws

1.4mm    1.9mm    2.5mm

Emergency screws


Plating options with corresponding screw capabilities:

Plates in the system with locking capabilities are grey while non-locking plates are gold or green in color. Gold (non-locking) and Green (compression) plates will not accept locking screws. Some specialty plate options include fifth metacarpal and rotation plates with vertical gliding holes. All plates can be further customized for the patients needs by using the in-system cutter and bending pliers.

Non-locking plate options:

1.2mm XS Profyle Hand Standard Plates

1.2mm XS Profyle Hand Standard Plates

1.7mm S Profyle Hand Standard Plates

1.7mm S Profyle Hand Standard Plates

2.3mm M Profyle Hand Standard Plates

2.3mm M Profyle Hand Standard Plates

Locking plate options:

1.7mm S VariAx Hand Locking Plates

1.7mm S VariAx Hand Locking Plates

2.3mm M VariAx Hand Locking Plates

2.3mm M VariAx Hand Locking Plates

Compression Plate options:

2.3mm M Profyle Hand Compression Plates

2.3mm M Profyle Hand Compression Plates

2.3mm L Profyle Hand Compression Plates

2.3mm L Profyle Hand Compression Plates

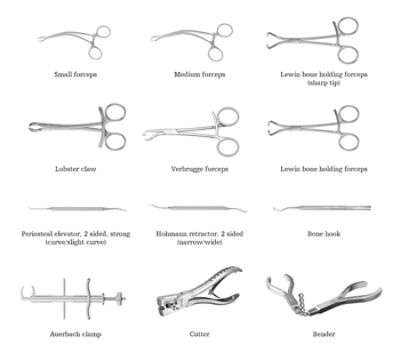

Reduction Instruments:



Stryker Hand Plating System: Small forceps

Small forceps

Stryker Hand Plating System: Lewin bone holding forceps

Lewin bone holding forceps

Stryker Hand Plating System: Lewin bone holding forceps

Lewin bone holding
forceps, sharp tip

Stryker Hand Plating System: Auerbach clamp

Auerbach clamp

Stryker Hand Plating System: Lobster claw

Lobster claw

Stryker Hand Plating System: Medium forceps

Medium forceps

Stryker Hand Plating System: Verbrugge forceps

Verbrugge forceps

Stryker Hand Plating System: Hohmann retractor

Hohmann retractor, 2-sided, narrow / wide

Stryker Hand Plating System: Bone hook

Bone hook

Stryker Hand Plating System: Periosteal elevator

Periosteal elevator, 2-sided, strong curve / slight curve

Stryker Hand Plating System plate benders

Bender

Stryker Hand Plating System Plate cutter

Cutter
