Airo® TruCT®

Great procedures start with great imaging.
Airo TruCT supports the demanding requirements of intra-operative imaging in surgery. With fan beam CT technology at its core, Airo TruCT is designed to capture cutting-edge imaging in challenging anatomical locations.

When you see more, you can do more.

Features and benefits

  • Scan one full meter of the spine (up to 51.2 cm x 100 cm scan volume)in a single scan in as little as 43 seconds1
  • The Airo TruCT considers your patient’s unique anatomy. It is designed to deliver customized radiation and potentially minimize radiation exposure2
  • Expand your capabilities with a 107 cm diameter bore for patient scans and positioning
  • Support clinical decision-making with a 32-slice detector array providing details anatomical imagine for bony and soft tissue
  • High-resolution images uploaded intra-operatively to the Q GuidanceSystem with Spine Guidance Software

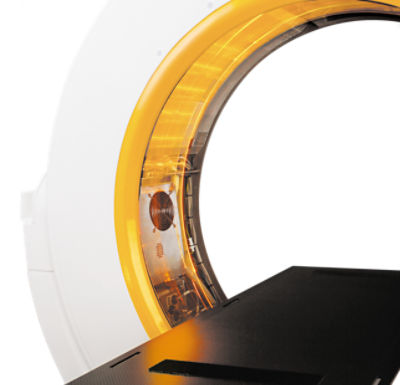

Airo_8

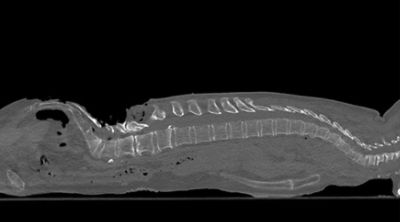

Image library

Image library

Great procedures start with great imaging. View the image library to see innovative fan beam technology imaging.

Informational video

Airo_Q video

Airo TruCT supports the demanding requirements of intra-operative imaging in spine surgery.

Watch the video to learn more.

Airo TruCT | system dimensions

Specifications w/Trumpf - desktop

Airo TruCT system dimensions
With Trumpf™ column

Specifications w/o Trumpf

Airo TruCT system dimensions
Without Trumpf™ column

Scan mode

In scan mode, the base is lowered onto the ground by retracting the casters in the support base. The Ring is rotated 90 degrees perpendicular to the base. In scan mode, all functionality other than transport is available to the user, such as patient loading, system positioning, image acquisition, and image processing. The Pendant provides a user interface which enables viewing and manipulation of stored images from the patient database. Images can be archived to a USB digital storage media or pushed to a PACS or a navigation system through DICOM protocol.

Transport mode

In transport mode, the Ring is aligned with the base, and the entire system is powered from a battery pack located on the Ring. In this mode, Airo can be driven and positioned by the control Pendant attached to one side of the Gimbal. Moving the Airo typically requires only a single person even when taking the system up or down a ramp. However, a second person may act as a spotter in busy or crowded hallways. Once the Airo has been moved to the desired location (for storage or scanning), it is then plugged into a standard power outlet for recharging.



Airo TruCT | system specifications



Gantry

Bore (Aperture):  107 cm
Gantry width:  38 cm
Image field of view:  51.2 cm



Helical scanning capabilities

Rotation time:  1.92 sec
Scan range:  1 meter
Scan time: 43 sec for 1 meter scan range1
Helical scan pitch:  1.415
Slice thickness:  32 x 1.0 mm
Image reconstruction time:  24 images per sec

Airo Truct system specs

X-ray generation


X-ray tube voltage:  80, 100, 120 kV
X-ray tube current:  5 - 250 mA
Focal spot size:  1.0 x 1.0 mm



Image quality

Reconstruction matrix:  512 x 512
Low contrast detectability:  3 mm at 0.5%

X-ray detection


Detection system:  Solid-State Array
Main detectors:  32 rows



Size and mobility

Weight of 816 kg (1800 lbs) + optional column 159 kg (350 lbs)

Airo contains a powered-drive system that can transport at a fixed rate of approximately 1 mph in the forward direction and 0.5 mph in the reverse direction.




Related products

Spine Guidance Software

Learn more

Cranial Guidance Software

Learn more
Contact your Stryker Enabling Technologies sales representative for more information on the Airo TruCT.
