AXS Lift™
Intracranial Base Catheter
Fewer devices. Farther reach.
We understand that streamlined access to the treatment site could allow you to treat your patient faster and potentially prevent complications.1 AXS Lift is the first of its kind intracranial base catheter designed to give you the simplicity of a biaxial setup with the support of a triaxial system.
See AXS Lift Intracranial Base Catheter in action ►

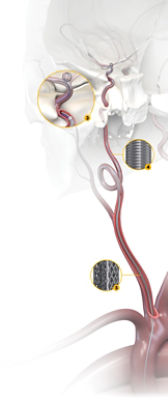

AXS Lift provides access and support to the cavernous ICA using a single catheter
AXS Lift's innovative technology gives you the reach of a high performance intermediate catheter with the support of a guide in one device.

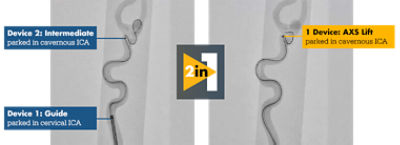

- Streamlined setup
- Reduces time from puncture to the cavernous by 29%
- Fewer catheters, fewer manipulations
With its large 0.074" ID, the AXS Lift Intracranial Base Catheter provides space for varied treatment techniques while also providing the support needed for a range of therapeutic devices. All this through a small 7F catheter.

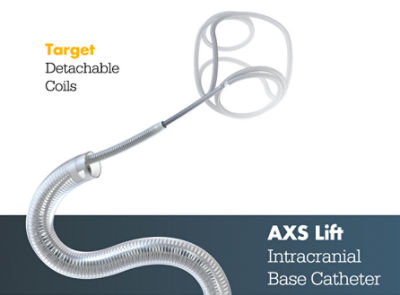

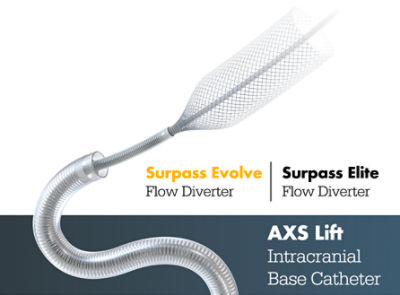

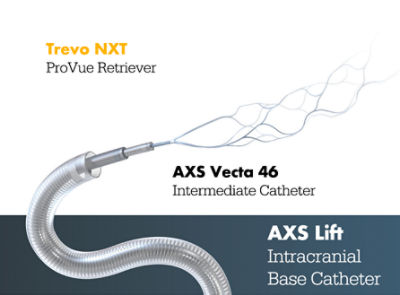

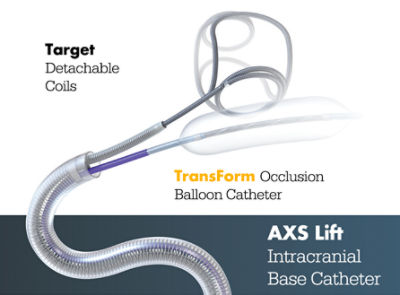

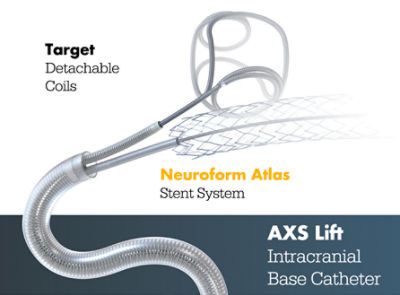

- Intracranial access that’s broadly compatible for interventions

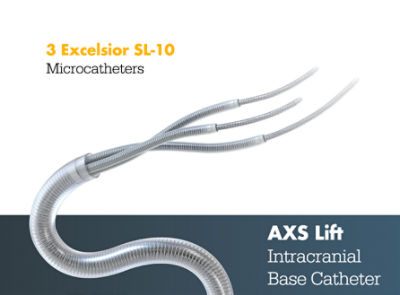

- Parallel or sequential microcatheter capabilities

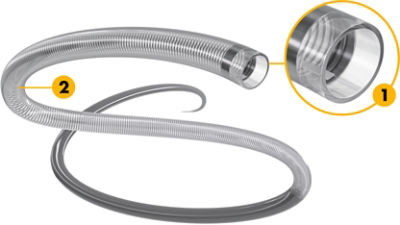

1) Atraumatic tip
Gentle for distal navigation
2) Low profile outer diameter 7Fr compatible (0.097in OD)
Low-profile OD minimizes puncture size
3) Large 0.074" inner diameter
Seamless compatibility with parallel techniques
4) Distal 15cm construction featuring nitinol round wire coils and ultra soft polymers
Highly trackable and supportive intracranially
5) Proximal construction featuring nitinol round wire coils, stainless steel braid and stiffer polymers
Pushable and supportive in the arch which eliminates the need for a guide
Diameter x length
- 0.074 x 95cm
- 0.074 x 105cm
- 0.074 x 110cm
Thank you!
References
1. Vakharia K, Waqas M, Shakir H, et al. Versatile use of catheter systems for deployment of the Pipeline embolization device: a comparison of biaxial and triaxial catheter systems. Journal of NeuroInterventional Surgery. 2020;12:585-590.
All tests performed by Stryker. Data and photos on file at Stryker.
