SpineJack® system

Take vertebral augmentation to the next level

The SpineJack system is designed for you to take control of the procedure, restore anatomy and protect patients from adjacent-level fractures
X

SpineJack® system | Stryker

Expand your vertebral compression fracture (VCF) treatment possibilities with the SpineJack system

With over 150,000 implants placed worldwide1, the SpineJack system rises above2 traditional fracture treatments, which often overlook reduction, fixation and restoration due to limitations in instrumentation. The SpineJack system is designed for you to take control of the procedure, restore anatomy and protect patients from adjacent-level fractures.2

SAKOS pivotal trial results for SpineJack system2

  • Restores midline vertebral body height
  • Protects from adjacent level fractures
  • Demonstrated improved VAS pain scores in patients at 1 month and 6 months post-procedure compared to BKP-treated patients

Please see Instructions for Use (IFU) for a complete listing of warnings, precautions and adverse events.

Product highlights


Product features

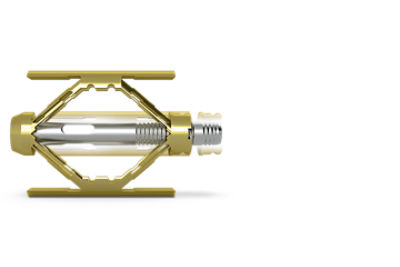

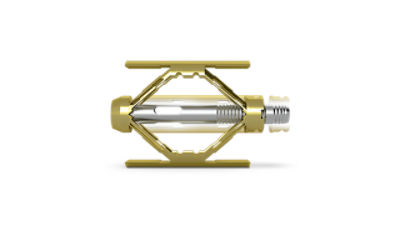

4.2mm SpineJack implant

4.2mm implant

Control

The SpineJack implant expands in a craniocaudal direction, combatting the compression forces of the spine with up to 1,000 newtons of expansion force.1 It’s power and precision, met with uncompromising control.

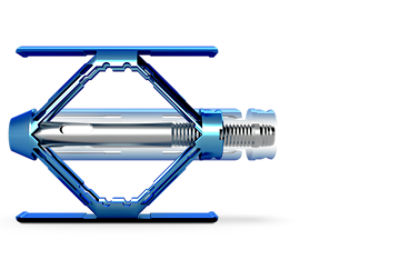

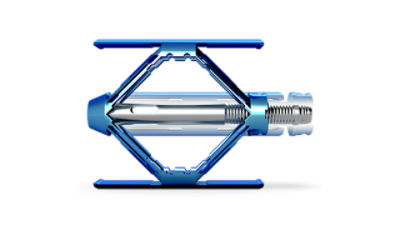

5.0mm SpineJack implant

5.0mm implant

Restore

The SpineJack system revolutionizes vertebral body height restoration, offering true restoration rather than just relief.2 The evidence confirms what we’ve long believed—VCF treatment is about more than just pain relief. Now, with the SpineJack system, you have the tools and confidence to restore vertebral body height like never before.

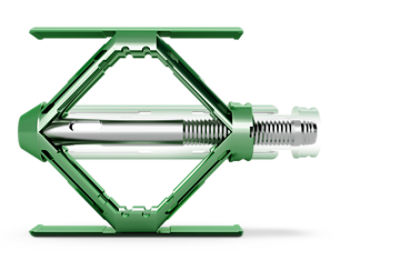

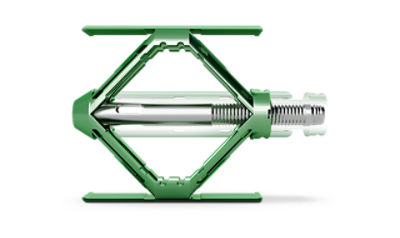

5.8mm SpineJack implant

5.8mm implant

Protect

The SpineJack system protects against adjacent-level fractures, which may occur due to changes in the load distributed to adjacent vertebral bodies after a compression fracture.3,4 It’s long-term protection that’s been a long time coming.

Kit contents

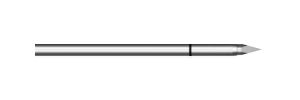

Access cannula

Access cannula

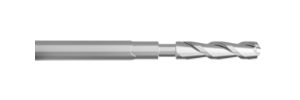

Reamer with working cannula

Reamer with working cannula

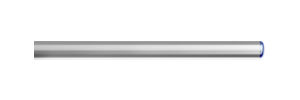

Cannula plug

Cannula plug

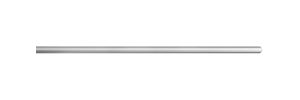

Guidewire

Guidewire (2)

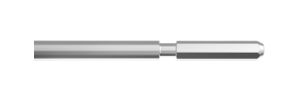

Template

Template

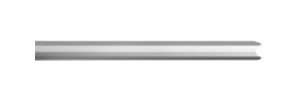

Working cannula

Working cannula

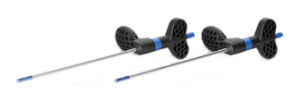

Expansion kit

Expansion kit (2)

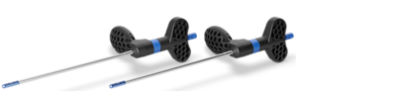

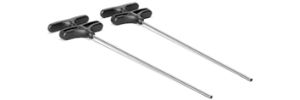

Cement pushers

Cement pushers

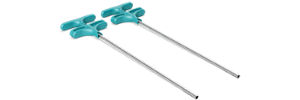

Injector transfer tubes

Injector transfer tubes

Preparation and expansion kits

The SpineJack system offers three implant kit sizes: 4.2mm, 5.0mm and 5.8mm. Each kit contains the appropriate instrumentation for the procedure—first for preparation, then for expansion and fracture reduction. The range of sizes accommodates various anatomies and fracture types.

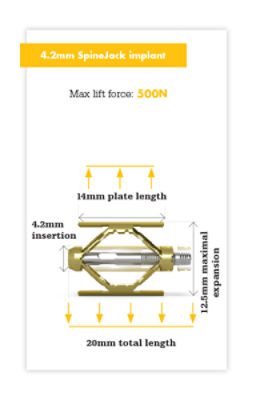

Product specs for 4.2mm SpineJack implant

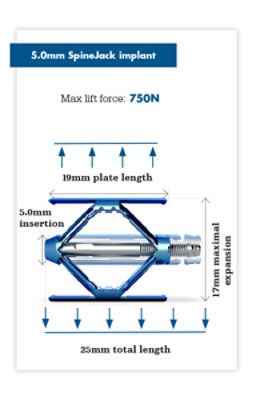

Product specs for 5.0mm SpineJack implant

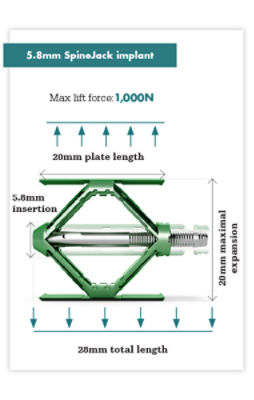

Product specs for 5.8mm SpineJack implant

The SpineJack system gives you the tools to take control of the procedure. Whether it’s a painful osteoporotic, traumatic or malignant pathologic vertebral compression fracture,* the SpineJack system allows you to rise to more challenges.

Procedure highlights


Pre-procedure planning

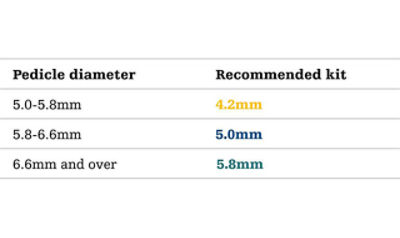

Optimal implant fit chart for SpineJack procedure

Please refer to the Instructions for Use (IFU) for a full size guide.

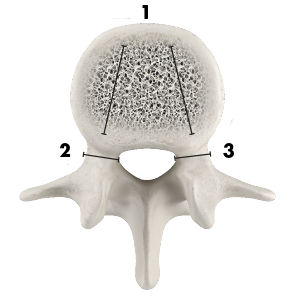

Pedicle width

A pedicle width of 0.8mm larger than the desired implant size is recommended to ensure safe placement (e.g., 4.2mm implant + 0.8mm = 5mm minimum pedicle width).

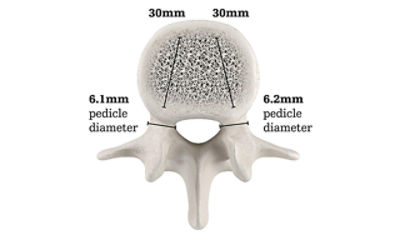

Vertebral body height for SpineJack procedure

Vertebral body height

The length of the vertebral body must also be measured, in order to define the largest implant size that can be opened in the vertebral body.

Procedure steps

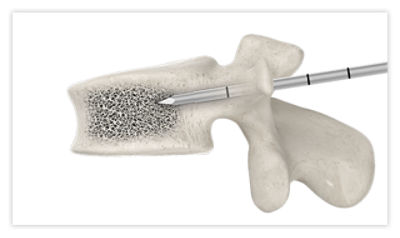

Step 1: Insert the cannula into the posterior one-third of the vertebral body

1. 11g access cannula

Insert the access cannula through the pedicle into the posterior one-third of the vertebral body.

Step 2: Insert the guidewire to the midpoint of the vertebral body, then remove the access cannula

2. Guidewire

Insert the guidewire halfway into the vertebral body, then remove the access cannula.

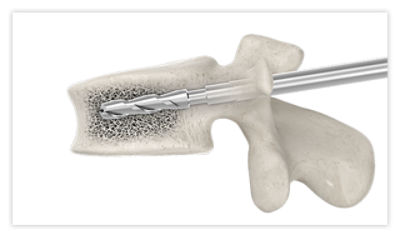

Step 3: Following the path of the guidewire, advance the reamer until it is entirely within the vertebral body

3. Reamer

Following the path of the guidewire, drill until fluting of the reamer is entirely within the vertebral body.

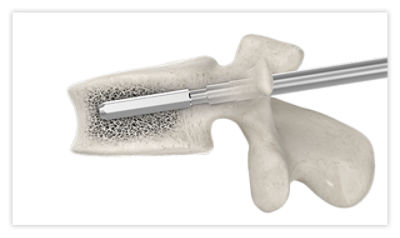

Step 4: Insert the template to clean the implant site and verify the length of the implant

4. Template

Insert the template into the working cannula to clean the implant site. The cannula plug is then inserted into the working cannula, which allows for visualization of depth of the implant.

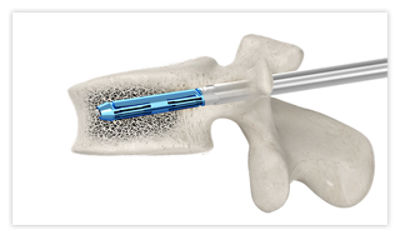

Step 5: Place the SpineJack implant into the vertebral body

5. Unexpanded

Insert the SpineJack implants into the vertebral body.

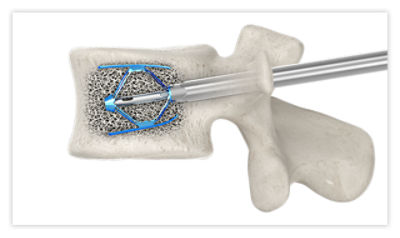

Step 6: Expand the SpineJack implant to reduce the fracture and restore the anatomy

6. SpineJack implants expanded (no cement)

The SpineJack implants are expanded to reduce the fracture and restore the anatomical height of the body of the vertebra.

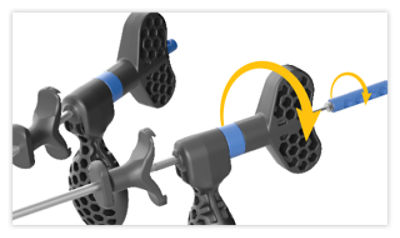

Step 7: Unscrew the quick release pin counterclockwise to release the implants

7. Releasing SpineJack implants

Unscrew the quick release pin counterclockwise to release the implants.

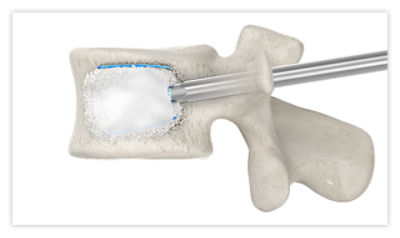

Step 8: Inject cement to stabilize the fracture

8. SpineJack implants expanded (with cement)

Bone cement is injected to stabilize the fracture.

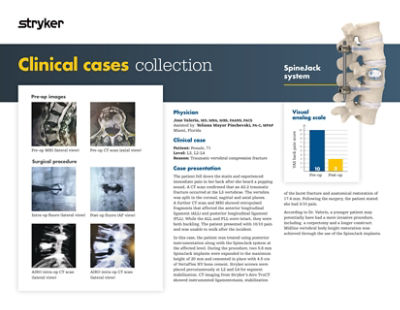

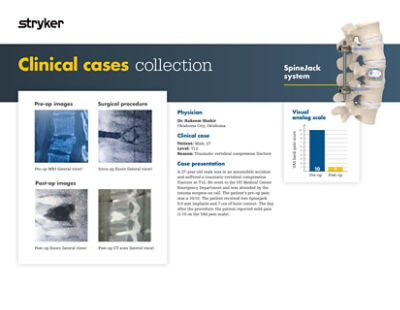

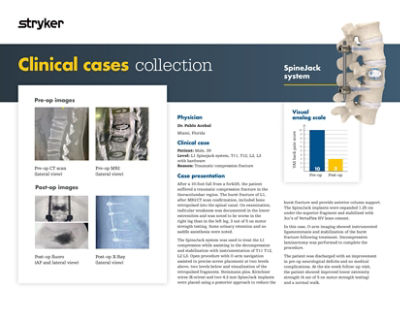

Clinical cases collection


Interested in learning more?
Contact us.

Pain is unrelenting. But so are we.

Thank you for your interest in Stryker's Interventional Spine products—bold and innovative approaches for treating patients experiencing pain. Tell us how we can help by answering the following questions, and we’ll work to get you what you need.

To place an order, contact your Stryker's Sales Representative or Stryker's Customer Service at 1 800 253 3210.
