Ortholoc® 2
Small Bones

Plating System with 3Di Technology

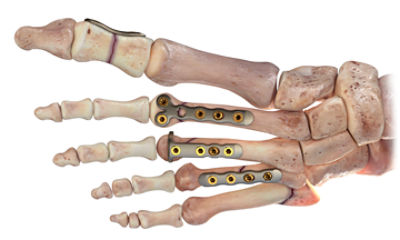

Ortholoc2SmallBones





The Ortholoc 2 Small Bones Plating System with 3Di Technology features a versatile array of plating options that include low-profile fracture utility plates, 3 different 5th metatarsal fracture plates, and a pinch plate designed to facilitate distal metatarsal osteotomies, as well as fractures.

Key features

  • Versatile, low-profile plate designs are Type II anodized, pairing increased strength* with minimal construct prominence
  • The Ortholoc 3Di screw hole accepts either a 2.0mm or 2.4mm non-locking or polyaxial locking screw, addressing variations in fracture patterns and patient anatomies

System offerings

The Ortholoc 2 Small Bones Plating System includes a T-Plate ranging from 6 holes to 8 holes, Straight Plate ranging from 2 holes to 8 holes, 5th, Metatarsal Y-Plate, 5th Metatarsal Hook Plate, Jones Fracture Plate, and a Pinch Plate.

Ortholoc Small Bones T-Plate

T-plate

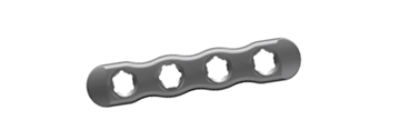

Ortholoc Small Bones Straight Plate

Straight plate

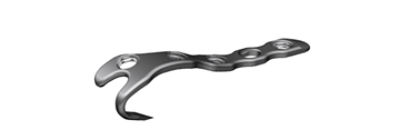

Ortholoc Small Bones 5th Met Y-Plate

5th met Y-plate

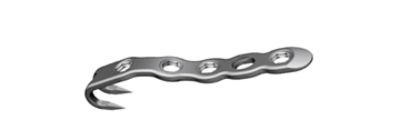

Ortholoc Small Bones 5th Met Hook Plate

5th met hook plate

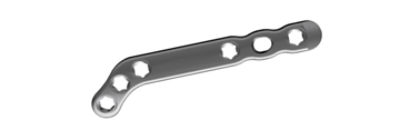

Jones Fracture Plate

Jones fracture plate

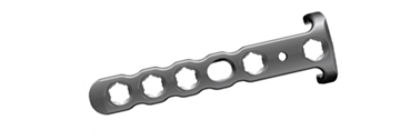

Pinch Plate

Pinch plate





Screws and instrumentation

The Ortholoc 3Di locking hole has been designed to accept 2.0mm and 2.4mm Ortholoc 3Di locking and non-locking screws. Surgeons can choose the most appropriate screw diameter and type based on anatomy, bone quality, and surgical goals.

2.0mm Locking Screws

2.0mm locking screws

  • On axis and polyaxial locking capability
  • Cortical thread
  • 1.3mm Pre-drill
  • 8 - 20mm lengths
Non Locking Screw

2.0mm non-locking screws

  • On axis and polyaxial capability
  • Cortical thread
  • 1.3mm Pre-drill
  • 8 - 20mm lengths
2.4mmLockingScrews

2.4mm locking screws

  • On axis and polyaxial locking capability
  • Cortical thread
  • 1.6mm Pre-drill
  •  8 - 30mm lengths
2.4mm Non-Locking Screws

2.4mm non-locking screws

  • On axis and polyaxial capability
  • Cortical thread
  • 1.6mm Pre-drill
  • 10 - 30mm lengths
