Ortholoc® 2 Crosscheck
Plating System with 3Di Technology
The Ortholoc 2 Crosscheck Module with 3Di Technology is a multi-functional plating system which utilizes 2.7mm and 3.5mm non-locking and polyaxial locking screws as well as a 3.5mm system specific cross screw that interfaces with the plate. The system includes anatomic Type II anodized titanium alloy plates specifically indicated for MTP and Lapidus fusions, in addition to utility plates for reconstruction of small bones in the foot and toes.
Key features
- Universal plate hole accepts 2.7mm and 3.5mm non-locking and polyaxial locking screws
- Indication and anatomic specific plate designs
- 3Di polyaxial locking capability
- Instrumentation designed specifically for corrective techniques
- Customizable modular kit
- Type II Anodization
System offerings
The Ortholoc 2 Crosscheck Plating System with 3Di technology includes an MTP plate, Lapidus Plate in 0mm and 2mm, Y-Plate, and a Utility 5-hole Plate.
Ortholoc 2 Crosscheck Plates

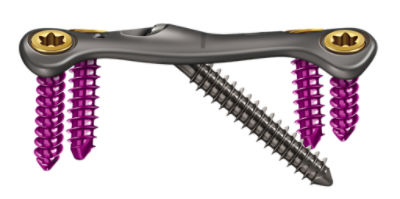

MTP

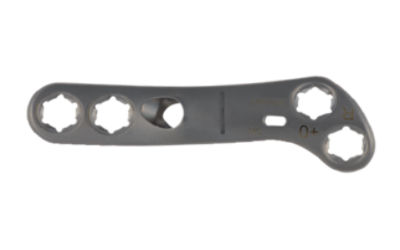

Lapidus 0mm

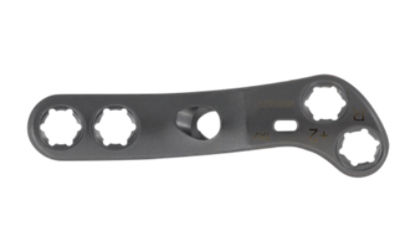

Lapidus 2mm

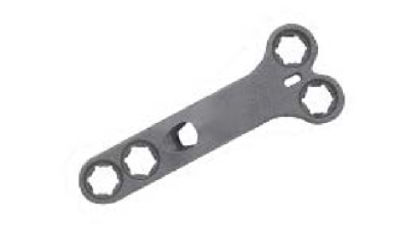

Y-Plate

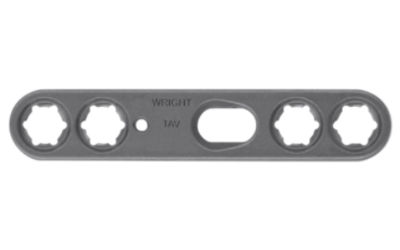

Utility 5-hole
Screws and instrumentation
The Ortholoc 3DI Locking hole has been designed to accept the 2.7mm and 3.5mm Ortholoc 3DI non-locking and polyaxial locking screws. Choose the most appropriate screw diameter and type based on anatomy, bone quality, and surgical goals.

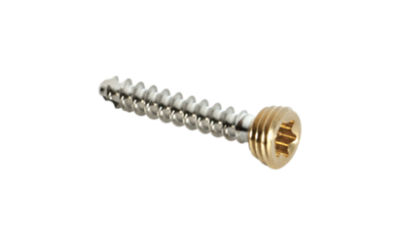

2.7mm Locking Screw
*On axis and polyaxial locking capability
- Cortical bone thread
- 2.0mm Pre-drill
- 10 - 30mm lengths
2.7mm Non-Locking Screw
- Low-profile head sits flush with plate
- Cortical bone thread
- 2.0mm Pre-drill
- 10 - 30mm lengths

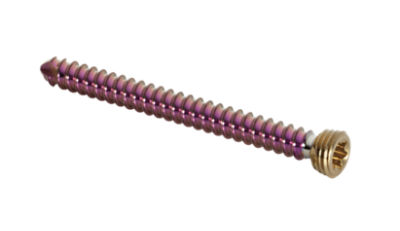

3.5mm Locking Screw
- On-axis and polyaxial locking capability
- Cortical bone thread
- 2.8mm Pre-drill
- 10 - 60mm lengths

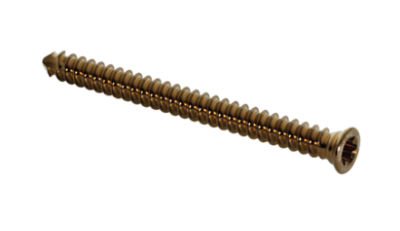

3.5mm Non-Locking Screw
- Low-profile head sits flush with plate
- Cortical bone thread
- 2.5mm Pre-drill
- 10 - 60mm lengths

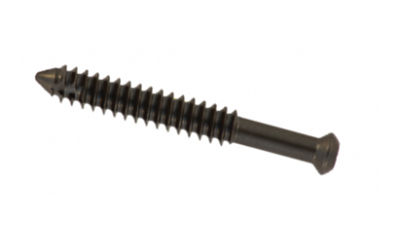

3.5mm Cross Screw
- Cortical bone thread
- 2.5mm Pre-drill
- 18 - 40mm lengths
- Head profile fits within plate

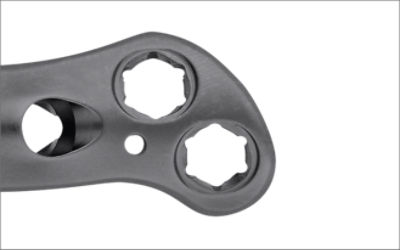

3Di Locking Technology

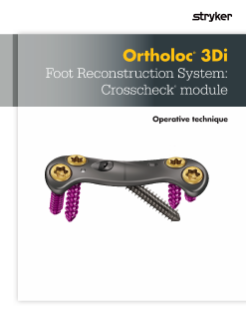

Product resources
