Futura CSI
Conical Subtalar Implant

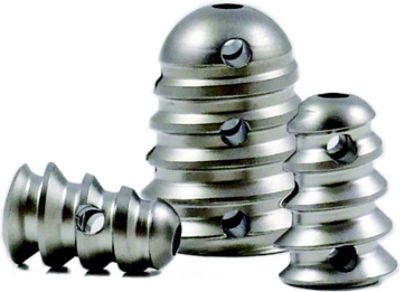

Intended to treat hyperpronated foot and stabilize the subtalar joint. The Futura CSI Implant is a one-piece device made of Titanium (6AL-4V ELI). The implant is intended to be implanted into the sinus tarsi of the foot. The Futura CSI Implants are intended to block forward, downward, and medial displacement of the talus, thus allowing normal subtalar joint motion but blocking excessive pronation and the resulting sequela.
Key features
- Conical implant geometry accommodates the sinus tarsi anatomy, aids insertion, and allows for an adjustment in blocking motion.
- Progressively softened threads are designed to minimize edge effects that may lead to pain while resisting migration.
- Fully cannulated to guide accurate insertion. Apertures allow for soft tissue in-growth.
- Supporting instrumentation features color-coded, radio-opaque trials for verification of placement.
- Acts as a spacer for the joint, maintaining the joint space, allowing for range of motion, but limiting excessive pronation.

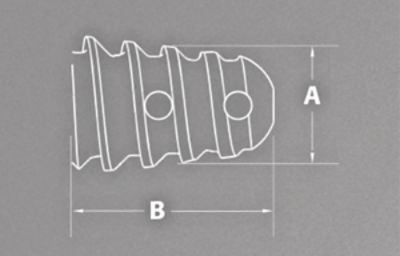

Implant sizes
Six sizes with the length varying with the diameter for an anatomical fit.
| A | B | CAT # |
| 7mm | 13mm | CSI-07 |
| 8mm | 14mm | CSI-08 |
| 9mm | 15mm | CSI-09 |
| 10mm | 16mm | CSI-10 |
| 11mm | 17mm | CSI-11 |
| 12mm | 18mm | CSI-12 |
