Ankle Truss System

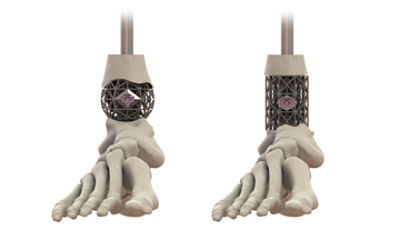

Arthrocube™ and Arthrosphere®
The Ankle Truss System (ATS) is an innovative solution for failed ankle replacements and limb salvage, offering standardized implants for faster treatment. Powered by Truss Implant Technology™, it is designed to promote bone growth, distribute load efficiently, and minimize subsidence. With digital pre-planning tools and specialized reamers, ATS can streamline surgery with a viable solution in patients whose only alternative may be amputation (BKA).
First of its kind fusion offering1
available for Foot & Ankle surgeons.
First product FDA cleared offering standardized sizes for failed ankle replacements and complex limb salvage cases.
Off-the-shelf sizes
First FDA cleared product offering standardized sizes for failed ankle replacements and complex limb salvage cases.1
Spherical reamers for foot & ankle
First acetabular reamers designed specifically for revision ankle fusion and limb preservation, including smaller sizes more commonly needed for this procedure.1
Foot & ankle focused
No more customs required. No more sourcing loose instruments. Everything you need in one place.
Care delivered faster
Instead of a 4-to-6 week typical waiting time for a custom designed implant1, time-sensitive patients can be treated as soon as next day.
Sizing options based in SOMA
Sizing options based on real patient anatomies from Prophecy & SOMA databases. Available sizing ranges designed to cover most patient anatomies.
Digital templates to pre-plan sizing
Optimize time in the operating room. Streamline sizing for optimized inventory in every case.
Fusion for patients who need it the most.
In a retrospective study, over 92% of patients showed fusion throughout the ankle joint using ATS implant technology, compared to the literature on IM nail with bulk allograft, showing 62.5% fusion rate.
| ATS clinical evidence2,3,4 | IM nail literature for failed TAA or AA5,6,7,8 | IM nail + bulk allograft literature9,10 | |
| Mean follow up time months [range] | 28.9 [1-65] (n=68) |
41.0 [2-88] (n=43) |
45.5 [11.4-67.2] (n=16) |
| Fusion rates % [range] | 92.6% [80.0-95.2] (n=68) |
69.8% [33.3-100] (n=43) |
62.5% [60-64] (n=16) |
| Pain score | 100 mm VAS Preop: 74.6 (Severe)* Postop: 25.4 (Mild)* n=49 |
AOFAS pain Preop: 11.7 (Severe, n=12) Postop: 33.5 (Mild, n=28) |
NR |
| Functional score | AOFAS FAAM ADL |
AOFAS pain Preop: 11.7 (Severe, n=12) Postop: 33.5 (Mild, n=28) |
AOFAS FFI |
Ankle Truss System Clinical Evidence included the retrospective study and two white papers (Raikin et. al' and Dekker et. al') reporting results of theirown ATS studies.
The Ankle Truss System data was compared to the two current standards of care: arthrodesis with just an IM Nail and arthrodesis with an IM nail + Bulk allograft.
Indicated for use with our comprehensive Ankle Fusion portfolio.
The Ankle Truss System is indicated for use with the T2 Ankle Arthrodesis Nail or the Valor Hindfoot Fusion Nail as part of a tibiotalocalcaneal fusion construct in a salvage procedure.
Related products
Optimize your surgical practice with our range of related products. From cutting-edge instruments to innovative surgical aids, find everything you need to enhance precision and efficiency in the operating room.
Contact us
Send us a message to learn more about Ankle Truss System (ATS)
Have questions or inquiries? We’re here to help! Fill out the contact form, and our dedicated team will get back to you promptly. Your feedback and inquiries are important to us, and we look forward to assisting you with any information or support you may need.
Are you a patient looking for more information or a physician in your area?
Click the button below for our patient website.
Thank you!
Thank you!
References
- Based on publicly available information
- Raikin S, Moncman T, Raikin J. Improved Pain and Function after TTC Fusion with a Custom Cage. Foot Ankle Int. 2022 Nov;43(11):1410-1418.
- Dekker T, Steele J, Federe A, Hamid K, Adams S. Use of Patient-Specific 3D-Printed Titanium Implants for Complex Foot and Ankle Limb Salvage, Deformity Correction, and Arthrodesis Procedures. Foot Ankle Int. 2018 Aug;39(8);912-921.
- TR-1085_B Use of Custom Made 4WEB Medical Ankle Truss System (ATS): A Retrospective Case Study Review
- Anderson T, Rydholm U, Besjakov J, et al. Tibiotalocalcaneal fusion using retrograde intramedullary nails as a salvage procedure for failed total ankle prostheses in rheumatoid arthritis: a report on sixteen cases. Foot Ankle Surg 2005, 11:143–7.
- Kotnis R, Pasapula C, Anwar F, et al. The management of failed ankle replacement. J Bone Joint Surg Br 2006;88(8):1039–47.
- Doets HC, Zurcher AW. Salvage arthrodesis for failed total ankle arthroplasty. Acta Orthop 2010;81(1):142–7.
- Easley H Montijo H, Wilson J et al. Revision Tibiotalar Arthrodesis. J Bone Joint Surg Am. 2008 Jun;90(6):1212-1223.
- Halverson AL, Goss DA Jr, Berlet GC. Ankle Arthrodesis With Structural Grafts Can Work for the Salvage of Failed Total Ankle Arthroplasty. Foot Ankle Spec. 2020; Apr;13(2):132-137.
- Deleu PA, Bevernage B, Maldague P, Gombault V, Leemrijse T. Arthrodesis After Failed Total Ankle Replacement. Foot Ankle Int. 2014 Jun;35(6):549-557.
