OrthoMap software
Advanced orthopaedic navigation for total hip and knee replacements.
We stand at the forefront of computer-assisted surgery
As the market leader in orthopaedic navigation1, we’re committed to bringing you unparalleled accuracy and control in total hip and knee replacements. Our proprietary tracking technology has produced the most accurate optical navigation camera on the market.2 Combine this industry-leading accuracy with our smart instruments, and the result is enhanced O.R. confidence in every procedure.
Features and benefits
- Automatic implant sizing and positioning
- Customizable workflow
- Fit analysis
- Gap balancing and analysis
- Implant downsize options
- Runs seamlessly on the Stryker NAV3 Platform

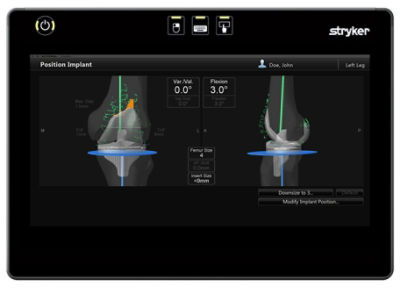

Position implant
Computer generated implant positioning can be adjusted intraoperatively.
Automatic implant sizing
and positioning
Based on each patient’s unique anatomy, Stryker’s sophisticated sizing and positioning algorithm offers enhanced visualization of the anterior match to calculate the optimal implant size, flexion and AP position to avoid notching.

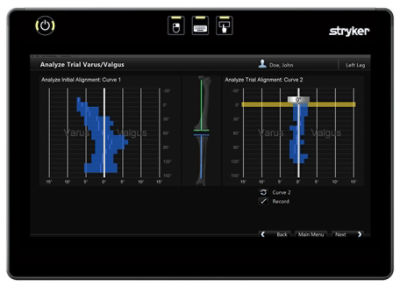

Kinematic feedback
and gap balancing
Pre-operative and post-operative comparisons of maximum flexion/extension and varus/valgus values provide intra-operative range of motion analysis. The optional gap balancing feature provides the surgeon with a preview of the flexion/extension gaps in real time before any femoral resections are made. This feature is available for all implant systems.
Features and benefits

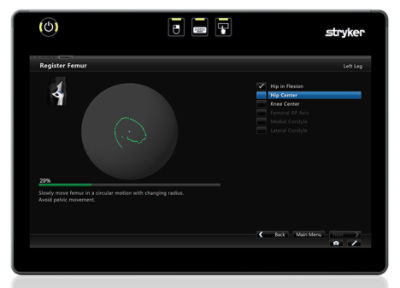

- Rapid registration
- No need for tracker pins in femur or tibia shafts
- Efficient navigation that shortens procedure time
- Personalized workflow options
- Compatibility with a variety of implant systems
- Runs seamlessly on the Stryker NAV3 Platform
Features and benefits
- Multiple registration options in both supine and lateral positions
- Easily defined table reference after patient preparation is complete
- Customizable surgical workflows to accommodate individual surgeon preferences
- Navigation of multiple patient positions and various surgical approaches, including direct anterior
- Pin-less leg length determination available
- No need to include pelvic tracker fixation into the patient surgical prep
- Runs seamlessly on the Stryker NAV3 Platform

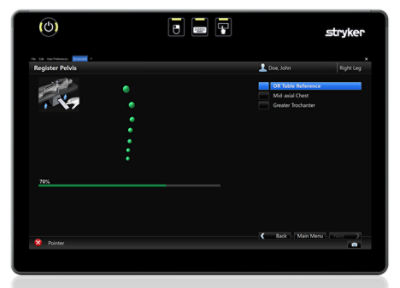

Lateral patient-table registration

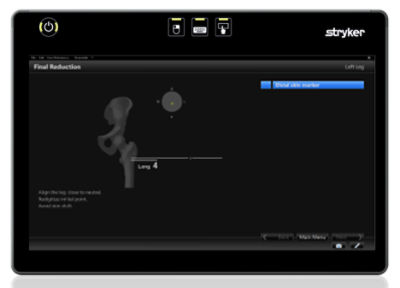

Pin-less leg length determination

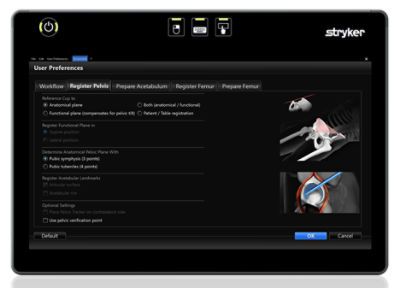

Customizable surgical workflows

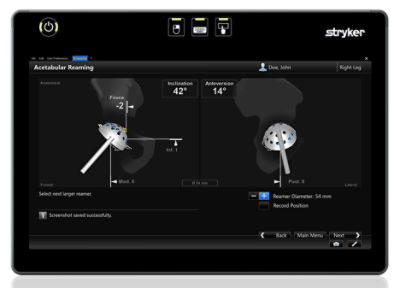

Inclination and anteversion feedback for all implant systems
Live feedback while reaming
"Overall, we're all focused on more rapid recovery, and the computer navigation systems that I've used help us work more accurately without having to open up as much...cutting down on blood loss, post-op pain and increasing or improving the surgical recovery."
Orthopaedic surgeon
1. Siddiqui, Z. “US Market Analysis for Surgical Navigation Systems.” Millenium Research Group. (2016)
2. Elfring R, de la Fuente M, Radermacher K. Assessment of optical localizer accuracy for computer-aided surgery systems. Comput Aided Surg. 2010;15(1-3):1-12.
