Cephalomedullary nailing system for the treatment of intertrochanteric fractures as well as a wide range of proximal femur fractures and associated femoral shaft fractures.
When it really matters,
Every advantage counts
Just like all other top-class professionals, you face critical decisions every day, striving to help rebuild lives as effectively and efficiently as possible, always relying upon next level tools and information. At Stryker, we make continuous, often small enhancements to our processes and products which, when added together, can make all the difference to our customers' performance and their patients' lives.
Trochanteric Nail
surgical animation
The Gamma4 Trochanteric Nail is a hip fracture solution for treatment of fractures in the intracapsular, trochanteric, subtrochanteric and shaft regions of the femur (including osteoporotic and osteopenic bone).
Redefined
nail design
- Pre-inserted and cannulated set screw
- SOMA designed1
- Length dependent Radius of curvature (RoC) Long Nails .75-1.351
- Chamfered distal tip
- Shortened proximal body by 5mm
- Wide distal diameter range: 9, 10, 11, 12, 13 & 15mm
Streamlined
workflow
- Precision Pin™ 3.9mm, has a drill top with 5mm threads
- Measure to the tip of Precision Pin™
- The Precision Pin™ with its larger diameter reduces the likelihood of deflection/skiving by 66% compared to a standard k-wire2
- The reduced pin deflection facilitates lag screw placement centrally through the nail according to the pre-planned trajectory, decreasing the risk of implant notching due to a deflected pin2,3
Integrated
instrument platform
- We have a streamlined portfolio where we utilize the existing IMN Basic set
- All nails have a dedicated distal targeting device
- Reduced inventory
- Lag Screw measurement off Precision Sleeve™
- Single Lag Screw Driver

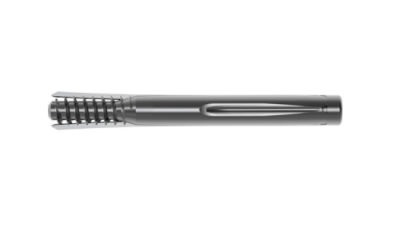

RC Lag Screw
- When rotational stability and fixation performance is desired, the RC Lag Screw may be used4
- Consists of three parts: RC Lag Screw, U-blade and U-blade end cap
- When assembled, the width of the tip increases to 12.5mm instead of 10mm due to the spread of the U-blade
Anti-rotation system
- Designed to provide stability in rotationally unstable femoral neck fragments
- Provides temporary fixation of the femoral head during reaming and Lag Screw insertion
Discover Gamma4
FAQs
The Gamma4 Hip Fracture Nailing System is a system of non-active implants intended to provide temporary stabilization for bones or bone fragments. It is indicated for the treatment of fractures in the intracapsular, trochanteric, subtrochanteric and shaft regions of the femur, including osteoporotic and osteopenic bone. The system includes Trochanteric, Intermediate and Long Nail options designed to accommodate anatomical variations in the femur through a range of neck-shaft angles, diameters, lengths and distal locking configurations.
The Gamma4 portfolio includes Trochanteric Nails, Intermediate Nails and Long Nails, providing multiple fixation options for different fracture patterns and anatomical requirements. The system is available with 120°, 125° and 130° Centrum-Collum-Diaphyseal (CCD) angles, a range of nail diameters and multiple nail lengths. Gamma4 nails are designed to be used with Lag Screws in the femoral head and Locking Screws or Advanced Locking Screws in the shaft. The system also offers an RC Lag Screw option, which is indicated for rotationally unstable fractures.
Gamma4 incorporates indication-specific instrumentation designed to support implant positioning and procedural efficiency. The system includes targeting arm options, a Targeting Sleeve, Precision Sleeve™, Anti-Rotation Clip, One Shot Device and dedicated distal targeting instruments. The One Shot Device may be used to predict Lag Screw positioning in both anterior-posterior and lateral views, while the targeting instruments are designed to assist with guided Lag Screw placement and distal locking. Gamma4 also utilizes a dedicated indication kit and organized tray layout containing the instruments required for the procedure.
Gamma4 offers several fixation options designed to address different clinical situations. If additional rotational stability and fixation performance is desired, the RC Lag Screw may be used as an option. The system also includes Advanced Locking Screws, which are designed to limit relative axial and angular movement between the nail and screw construct. According to the operative technique, these screws are designed to increase construct stability within unstable fracture patterns and/or poor bone quality conditions. They can be used in all round holes of the nails.
The Gamma4 Hip Fracture Nailing System is designed with a range of implant configurations intended to accommodate anatomical variation in the femur. The system offers multiple CCD angles, nail diameters and nail lengths, including Long Nails available from 240 mm to 480 mm in 20 mm increments. Gamma4 also includes Trochanteric, Intermediate and Long Nail designs with specific distal locking configurations. Pre-operative planning is supported through Gamma4 X-ray templates, which may assist surgeons in selecting an appropriately sized implant based on patient anatomy and fracture characteristics.
Related products
Linear Reduction Clamp
A versatile instrument set designed to aid in the reduction and ultimate fixation of fractures over a range of applications.
Learn moreStay in touch
Register to learn more and stay updated about Gamma4 solutions in EMEA
Thank you!
TEACH: Education for the driven
Explore our Medical Education offering for trauma care in EMEA
- Internal Report № D0000089997, Rev AA
- Internal Reports № D0000099352, Rev AE & D0000294387, Rev AA.
- Klima ML. Comparison of Early Fatigue Failure of the TFNa and Gamma 3 Cephalomedullary Nails in the United States From 2015 to 2019. J Orthop Trauma. 2021;35(2):e39-e44. doi:10.1097/BOT.0000000000001864
- Internal Report № D0000245312, Rev AE
